Alcatel-Lucent 8029 Premium DeskPhone
Alcatel-Lucent 8029 是一款高階企業級雙模桌面電話機，支援 IP (SIP/H.323) 與類比 (POTS) 線路，配備 QWERTY 全鍵盤、彩色 LCD 螢幕、USB 介面與可擴充模組，適合高管、秘書或需快速輸入文字與多任務處理的專業用戶。
Alcatel-Lucent 8029 Premium DeskPhone – Dual-Mode Executive IP Phone

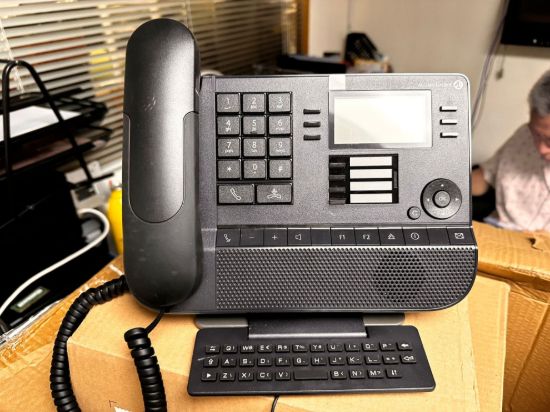

這款電話機屬於 Alcatel-Lucent（現為 ALE International）OmniPCX Enterprise 生態系中的高端終端設備，採用堅固塑膠外殼搭配金屬質感底座，正面設有 2.8 吋灰階 LCD 螢幕（非彩色）、標準數字鍵盤、QWERTY 全鍵盤（用於快速輸入姓名、郵件、備忘錄等）、導航圓盤 + OK 鍵、F1/F2 自定義功能鍵、以及大型免持揚聲器。
🔧 硬體規格特徵：
- ✅ Display: 2.8" monochrome LCD (graphical, backlit)
- ✅ Keypad:
- Standard numeric keypad
- Full QWERTY keyboard (for text entry, email, notes)
- Navigation pad with central “OK” button
- Function keys: F1, F2, Mute, Volume, Headset, Message
- ✅ Audio:
- HD Voice support (wideband audio)
- Speakerphone with noise cancellation
- Handset and headset ports

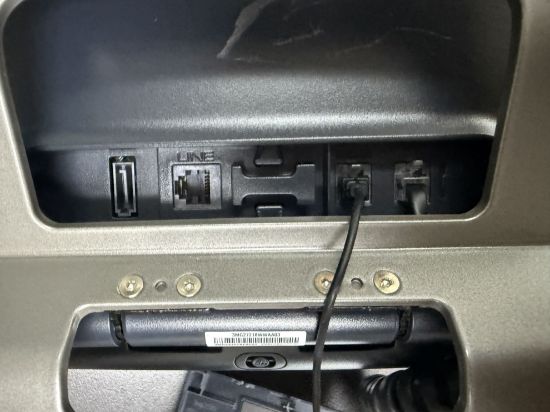

- ✅ Connectivity:
- 1 x RJ45 Ethernet port (10/100 Mbps) — supports PoE (IEEE 802.3af) optional
- 1 x RJ11 LINE port — for analog PSTN or FXS connection
- 1 x USB Host port — for firmware update, logging, or peripheral (e.g., USB drive)
- 1 x Headset port (RJ9 or 3.5mm, depending on region)
- 1 x Handset port (standard RJ9)
- ✅ Power:
- Supports PoE (802.3af) via Ethernet OR external power adapter (not included)
- Power consumption: ~5W typical
- ✅ Mounting: Desktop stand (removable) or wall-mountable
- ✅ Expandability: Supports sidecar modules (e.g., 8029 Key Module) for additional DSS keys
- ✅ Certifications: CE, FCC, NOM, ANATEL, ICASA, RoHS, Telepermit
- ✅ Origin: Assembled in Ukraine, Components from China (see label)
- ✅ Serial Number: SN: FUM200222368 (visible on box and device base)
💡 軟體與功能特性：
- 支援 Alcatel-Lucent proprietary protocol (ALCATEL DIGITAL) AND SIP/H.323 → 可同時連接 OXE PBX 與第三方 SIP server
- 多帳戶註冊（最多 4 個 SIP accounts + 1 digital line）
- 呼叫等待、轉接、保留、三方會議、呼叫轉移至手機
- XML 應用程式支援（日曆、天氣、新聞、公司目錄）
- LDAP 目錄查詢
- 自訂鈴聲、背景圖案、語言介面（含中文）
- Web-based configuration interface (HTTP/HTTPS)
- Remote provisioning via DHCP Option 66 or static URL
- Firmware upgrade via USB or network
- Compatible with Alcatel-Lucent OmniPCX Enterprise R12.x and later
